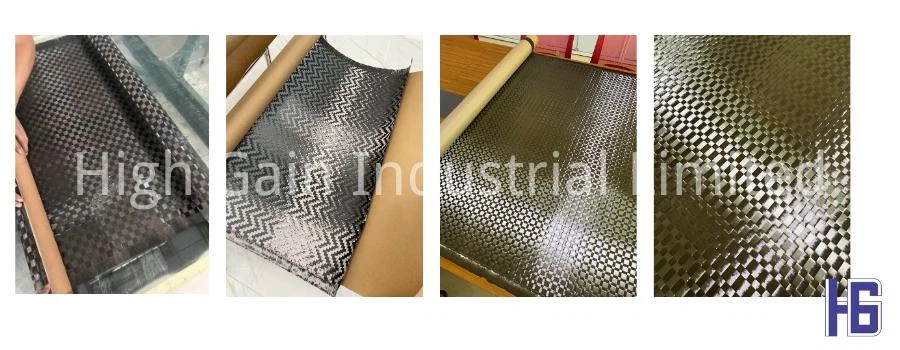

Carbon Fiber Spread Tow Fabrics and Prepreg
80g, 88g, 100g, 200g for plain or/& twill pattern of Carbon Fiber Spread Tow Fabrics and Prepreg are offered using high grade 12K T700 Carbon Fiber from Toray.
Unlike similar foreign spread tow fabrics, ours are produced using two Spread Tow UD tapes as warp and weft in a weave. Advanced ultrasonic technology is adopted for weaving ensuring the width for each tow is exactly the same and hence the final product will be neatly done.
|
Mod |
Tow Width |
FAW |
Fabrics Width |
Length |
Thickness |
Carbon Fiber |
Pattern |
|
mm |
g/m2 |
mmel |
m/roll |
mm |
|||
|
HG-12-80P |
20 |
80 |
1000 / 1270 / 1500 |
100 |
0.08 |
12K |
Plain |
|
HG-12-88P |
18 |
88 |
1000 / 1270 / 1500 |
100 |
0.9 |
12K |
Plain |
|
HG-12-100P |
16 |
100 |
1000 / 1270 / 1500 |
100 |
0.10 |
12K |
Plain |
|
HG-12-133P |
12 |
133 |
1000 / 1270 / 1500 |
100 |
0.13 |
12K |
Plain |
|
HG-12-200P |
8 |
200 |
1000 / 1270 / 1500 |
100 |
0.2 |
12K |
Plain |
|
HG-12-200T |
8 |
200 |
1000 / 1270 / 1500 |
100 |
0.2 |
12K |
Twill |
* may contact us for more models information
Features:
Use of advanced ultrasonic technology
Attractive aesthetic finishing
No stabilisation needed
Higher strength and higher modulus
Higher impact resistance
Better mechanical performance
Areas for High Performance Applications:
Sports and leisure equipment
Automotive
Aerospace
